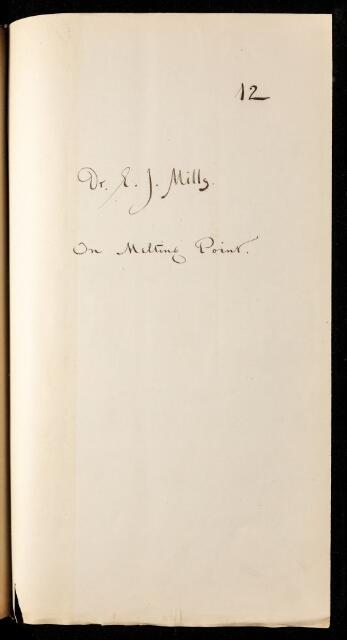

Unpublished paper, 'On melting point' by Edmund J [James] Mills

Description

Mills describes an investigation undertaken in order to determine, with considerable accuracy, the temperature at which certain organic substances pass from the solid to the liquid state. The apparatus consists of a bath nearly filled with oil of vitriol. In this is inserted a glass funnel, having on its lower edge six equidistant semicircular cuts of about 5mm radius, and, at the end of the neck, four of the same. A thin test-tube, resting freely on the funnel, contains a bath of paraffin oil, in which the thermometer’s bulb is centrally placed; against the bulb, in a little tube separately represented, is fixed the substance whose melting point is to be determined. When the large bath is heated, constrained and regular convection takes place in the liquid; the effect upon the thermometer is such as to cause the mercury to rise with very great steadiness.

Annotations in pencil throughout. Marked on front as 'Archives Apr 1882'.

Subject: Chemistry

Received 6 December 1881. Read 22 December 1881.

Whilst the Royal Society declined to publish this paper in full, an abstract of the paper was published in volume 33 of the Proceedings of the Royal Society as 'On melting point'.

Reference number

AP/61/12

Earliest possible date

1881

Physical description

Ink and graphite pencil on paper

Page extent

52 pages

Format

Manuscript
